Basic info

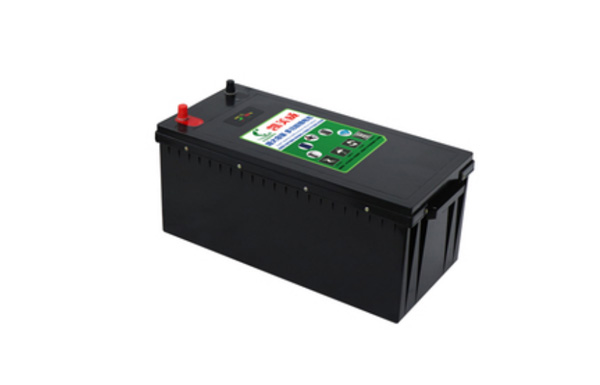

Lithium Iron Phosphate Battery / LiFePO4
Model No.: YHT-24V100AH
Size: 498（±1）mm*228（±1）mm*226（±1）mm
Nominal voltage: 24V
Nominal capacity: 100AH
Charge voltage: 28.8V
Charge current: 50A
Max charge current：200A
Max continuous discharge current: 600A
Instantaneous discharge current：1000A
Operating temperature range: -40~65℃
Cycle life: ≥1000 times
Shell：cold rolled sheet/ 3U
Weight: around 36kg

Feature
1. Low self-discharge and good discharge performance at low temperature.
2. Intelligent BMS, cell balancing function,short circuit protection,over charging protection, over discharging protection, over drawing current protection, over temperature protection.
3. Low requirement for space and bearing capacity, flexible installation site.
4. Long life, no need to change frequently, high power density, high energy density.
5. Environmentally friendly.
6. Welcome to customize
